Calibration of steady and transient models#
This notebook introduces the timflow.Calibrate class, which can be used to
calibrate steady and/or transient models to head observations.
Contents#
import matplotlib.pyplot as plt
import numpy as np
import timflow as tf
import timflow.steady as tfs
import timflow.transient as tft
Steady calibration#
In this section we will test the calibration of a steady model. First, we build a model to represent the “truth”.
ml_s = tfs.ModelXsection(naq=1)
river_s = tfs.XsectionMaq(
ml_s,
x1=-np.inf,
x2=0.0,
kaq=[10.0],
z=[0.1, 0, -10],
c=[1e-4],
npor=0.3,
topboundary="semi",
hstar=2,
name="river",
)
polder_s = tfs.XsectionMaq(
ml_s,
x1=0.0,
x2=np.inf,
kaq=[10.0],
z=[1, 0, -10],
c=[500],
npor=0.3,
topboundary="semi",
hstar=0,
name="polder",
)
ml_s.solve()
Number of elements, Number of equations: 4 , 2
.
.
.
.
solution complete

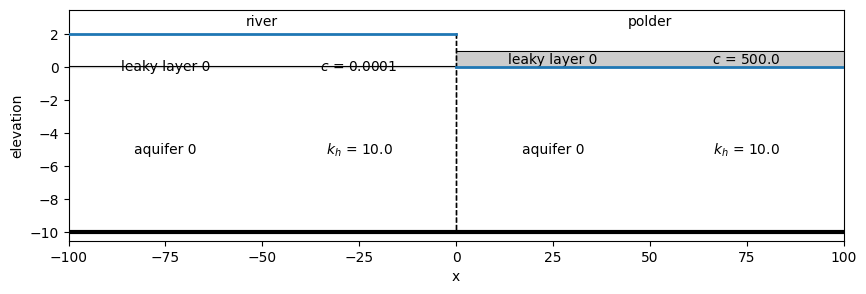

fig, ax = plt.subplots(figsize=(10, 3))
ax.set_ylim(-10.5, 3.5)
ml_s.plots.xsection(
xy=([-100, 0], [100, 0]), names=True, labels=True, params=True, ax=ax
);
Select 3 head observations that we will use in our calibration.
x = np.linspace(-50, 1000, 101)
h0 = ml_s.headalongline(x=x, y=np.zeros_like(x))
x_obs = [10, 100, 500]
h_obs = ml_s.headalongline(x=x_obs, y=np.zeros_like(x_obs))[0]

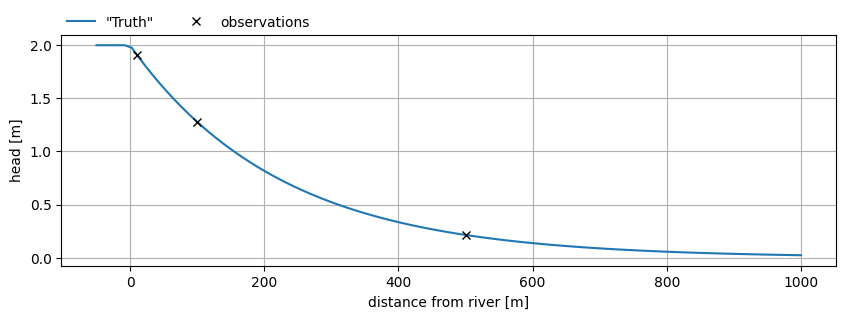

plt.figure(figsize=(10, 3))
plt.plot(x, h0[0], label='"Truth"')
plt.plot(x_obs, h_obs, "kx", label="observations")
plt.legend(loc=(0, 1), frameon=False, ncol=2)
plt.ylabel("head [m]")
plt.xlabel("distance from river [m]")
plt.grid()
Perform the calibration. We are using the same model we created before, but we are purposely setting the initial parameter estimates to different values.
cal = tf.Calibrate(steady_model=ml_s)
for i in range(len(x_obs)):
cal.add_steady_head(name=f"obs{i}", x=x_obs[i], y=0.0, layer=[0], h=h_obs[i])
cal.set_aquifer_parameter("kaq", layers=[0], initial=2.0, inhoms=["river", "polder"])
cal.set_aquifer_parameter("c", layers=[0], initial=10.0, inhoms=["polder"])
cal.fit(printdot=False)
initial optimal pmin pmax log_scaled n_targets \
name
kaq_0_0_river_polder 2.0 9.999999 -inf inf False 2
c_0_0_polder 10.0 500.000035 -inf inf False 1
n_models n_inhoms
name
kaq_0_0_river_polder 1 2
c_0_0_polder 1 1
RMSE: 1.392e-08
View the parameters dataframe:
cal.parameters.style.format(formatter="{:.2f}", subset=["initial", "optimal"])
| initial | optimal | pmin | pmax | log_scaled | n_targets | n_models | n_inhoms | |
|---|---|---|---|---|---|---|---|---|
| name | ||||||||
| kaq_0_0_river_polder | 2.00 | 10.00 | -inf | inf | False | 2 | 1 | 2 |
| c_0_0_polder | 10.00 | 500.00 | -inf | inf | False | 1 | 1 | 1 |

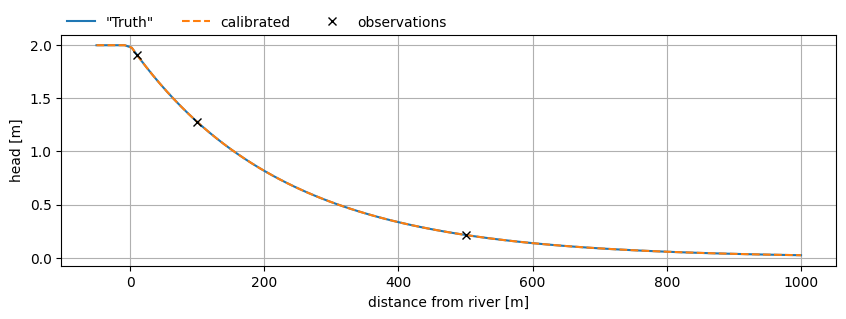

Plot the results and compare to the truth.
hc = ml_s.headalongline(x=x, y=np.zeros_like(x))
plt.figure(figsize=(10, 3))
plt.plot(x, h0[0], label='"Truth"')
plt.plot(x, hc[0], ls="dashed", label="calibrated")
plt.plot(x_obs, h_obs, "kx", label="observations")
plt.legend(loc=(0, 1), frameon=False, ncol=3)
plt.ylabel("head [m]")
plt.xlabel("distance from river [m]")
plt.grid()
Transient calibration#
In this section, we will test the calibration of a transient model with a sudden rise of 2 m in river water level after t=0.1 days.
ml_t = tft.ModelXsection(naq=1, tmin=1e-3, tmax=100)
river_t = tft.XsectionMaq(
ml_t,
x1=-np.inf,
x2=0.0,
kaq=[10.0],
z=[0.1, 0, -10],
c=[1e-4],
Saq=[1e-3],
topboundary="semi",
tsandhstar=[(0.1, 2)],
name="river",
)
polder_t = tft.XsectionMaq(
ml_t,
x1=0.0,
x2=np.inf,
kaq=[10.0],
z=[1, 0, -10],
c=[500],
Saq=[1e-3],
topboundary="semi",
name="polder",
)
ml_t.solve()
self.neq 2
solution complete

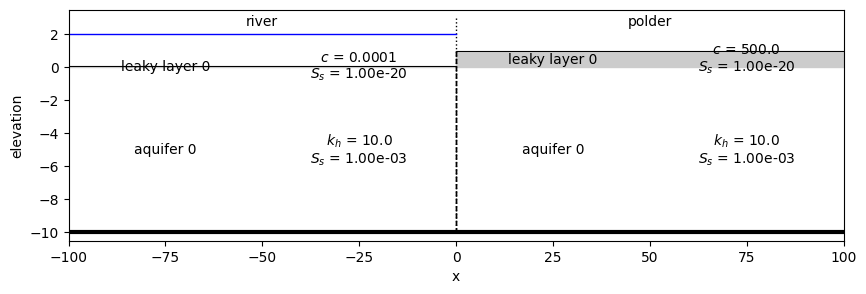

fig, ax = plt.subplots(figsize=(10, 3))
ax.set_ylim(-10.5, 3.5)
ml_t.plots.xsection(
xy=([-100, 0], [100, 0]),
names=True,
labels=True,
params=True,
ax=ax,
sep="\n",
hstar=2.0,
);

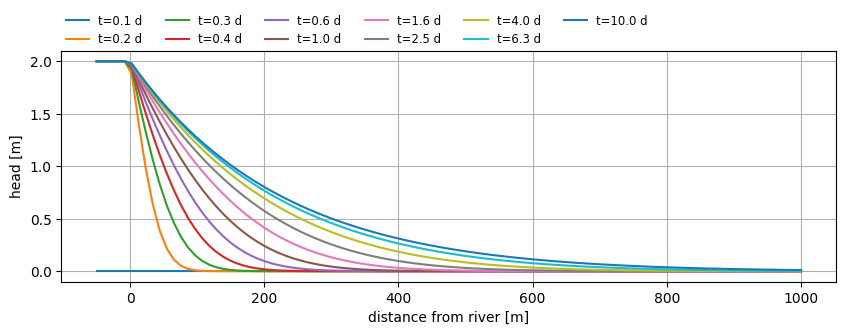

Plot the head over time along the cross-section. We will extract the heads at the three observation points we used earlier as our observation time series.
t = np.logspace(-1, 1, 11)
h0 = ml_t.headalongline(x=x, y=np.zeros_like(x), t=t)
plt.figure(figsize=(10, 3))
for i in range(len(t)):
plt.plot(x, h0[0, i], label=f"t={t[i]:.1f} d")
plt.legend(loc=(0, 1), frameon=False, ncol=6, fontsize="small")
plt.ylabel("head [m]")
plt.xlabel("distance from river [m]")
plt.grid()

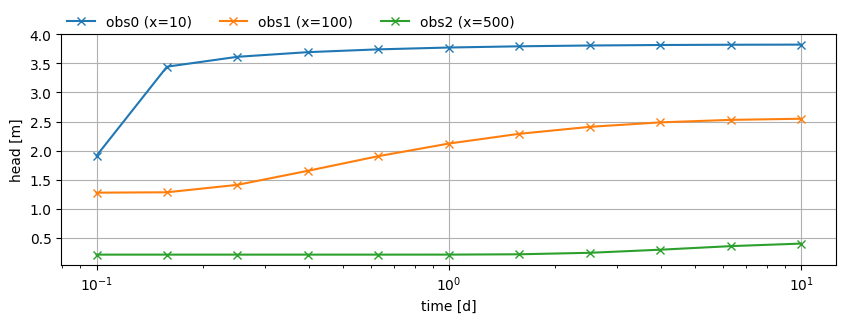

Plot our observation data. Note the log-scale of the x-axis.
h_obs_series = ml_t.headalongline(x=x_obs, y=np.zeros_like(x_obs), t=t)
plt.figure(figsize=(10, 3))
for i in range(len(x_obs)):
plt.plot(t, h_obs_series[0, :, i], label=f"obs{i} (x={x_obs[i]})", marker="o")
plt.legend(loc=(0, 1), frameon=False, ncol=3)
plt.ylabel("head [m]")
plt.xlabel("time [d]")
# plt.xscale("log")
plt.grid()
Create the calibration class, add the observation time series, set the calibration parameters, and calibrate the model.
cal = tf.Calibrate(transient_model=ml_t)
for i in range(len(x_obs)):
cal.add_head_time_series(
name=f"obs{i}",
x=x_obs[i],
y=0.0,
layer=[0],
t=t,
h=h_obs_series[0, :, i],
normalized=True,
)
cal.set_aquifer_parameter("kaq", layers=[0], initial=2.0, inhoms=["river", "polder"])
cal.set_aquifer_parameter("c", layers=[0], initial=10.0, inhoms=["polder"])
cal.set_aquifer_parameter("Saq", layers=[0], initial=1e-4, inhoms=["polder"])
cal.fit(printdot=False)
initial optimal pmin pmax log_scaled n_targets \
name
kaq_0_0_river_polder 2.0000 10.000424 -inf inf False 2
c_0_0_polder 10.0000 499.978787 -inf inf False 1
Saq_0_0_polder 0.0001 0.001000 -inf inf False 1
n_models n_inhoms
name
kaq_0_0_river_polder 1 2
c_0_0_polder 1 1
Saq_0_0_polder 1 1
RMSE: 2.575e-08
cal.parameters.style.format(formatter="{:.2e}", subset=["initial", "optimal"])
| initial | optimal | pmin | pmax | log_scaled | n_targets | n_models | n_inhoms | |
|---|---|---|---|---|---|---|---|---|
| name | ||||||||
| kaq_0_0_river_polder | 2.00e+00 | 1.00e+01 | -inf | inf | False | 2 | 1 | 2 |
| c_0_0_polder | 1.00e+01 | 5.00e+02 | -inf | inf | False | 1 | 1 | 1 |
| Saq_0_0_polder | 1.00e-04 | 1.00e-03 | -inf | inf | False | 1 | 1 | 1 |

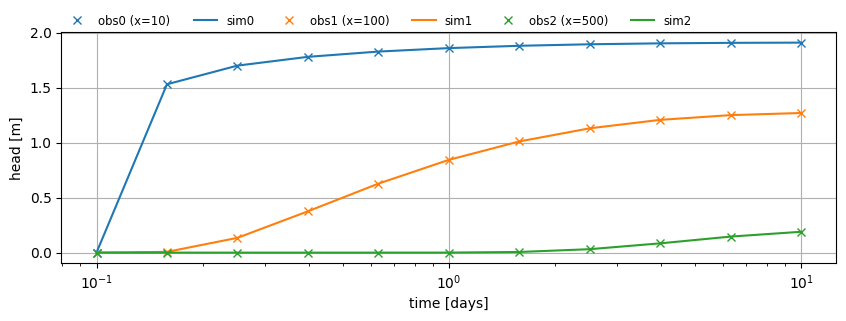

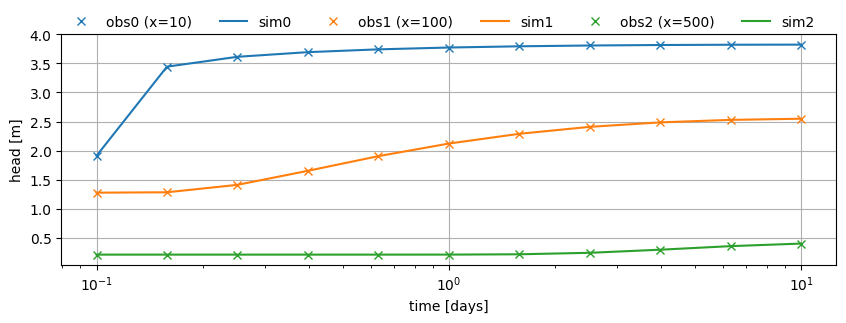

plt.figure(figsize=(10, 3))
hm = ml_t.headalongline(x=x_obs, y=np.zeros_like(x_obs), t=t)
for i in range(len(x_obs)):
plt.plot(
t, h_obs_series[0, :, i], label=f"obs{i} (x={x_obs[i]})", marker="x", ls="none"
)
plt.plot(t, hm[0, :, i], label=f"sim{i}", color=f"C{i}")
plt.xscale("log")
plt.legend(loc=(0, 1), frameon=False, ncol=6, fontsize="small")
plt.xlabel("time [days]")
plt.ylabel("head [m]")
plt.grid()
Combined calibration#
Next, we want to attempt a combined calibration. This is done by superposition of a steady model, representing the average situation (i.e. the average river stage), and a transient model that captures the effect of a sudden change in the river water level. The average river stage is 2 m+ref, the sudden rise is 2m at t=0.1 days.
We build 2 models, a steady and transient model. Note that we give the XSection
elements the same names in both models. This allows the calibration class to share
parameters between zones (e.g. the polder) across both models.
The steady model is added to the transient model. This means the transient model will use the steady model to compute heads and flows: \(h = h_\text{steady} + h_\text{transient}\).
ml_s = tfs.ModelXsection(naq=1)
river_s = tfs.XsectionMaq(
ml_s,
x1=-np.inf,
x2=0.0,
kaq=[10.0],
z=[1, 0, -10],
c=[1e-4],
npor=0.3,
topboundary="semi",
hstar=2,
name="river",
)
polder_s = tfs.XsectionMaq(
ml_s,
x1=0.0,
x2=np.inf,
kaq=[10.0],
z=[1, 0, -10],
c=[500],
npor=0.3,
topboundary="semi",
hstar=0,
name="polder",
)
# add steady model to transient model
ml_t = tft.ModelXsection(naq=1, tmin=1e-3, tmax=100, steady=ml_s)
river_t = tft.XsectionMaq(
ml_t,
x1=-np.inf,
x2=0.0,
kaq=[10.0],
z=[1, 0, -10],
c=[1e-4],
Saq=[1e-3],
topboundary="semi",
tsandhstar=[(0.1, 2)],
name="river",
)
polder_t = tft.XsectionMaq(
ml_t,
x1=0.0,
x2=np.inf,
kaq=[10.0],
z=[1, 0, -10],
c=[500],
Saq=[1e-3],
topboundary="semi",
name="polder",
)
ml_t.solve()
Number of elements, Number of equations: 4 , 2
.
.
.
.
solution complete
self.neq 2
solution complete

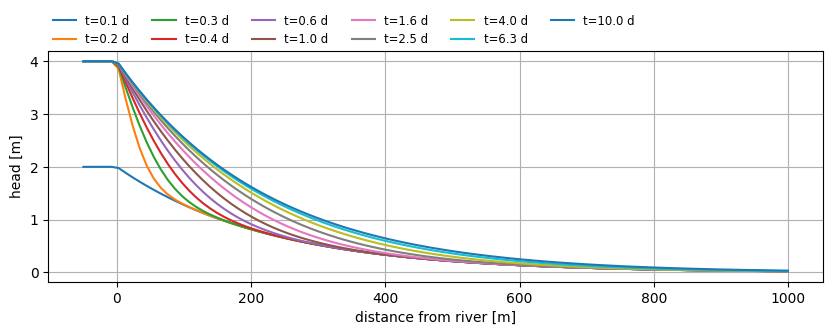

Plot the change in head over time.
t = np.logspace(-1, 1, 11)
h0 = ml_t.headalongline(x=x, y=np.zeros_like(x), t=t)
plt.figure(figsize=(10, 3))
for i in range(len(t)):
plt.plot(x, h0[0, i], label=f"t={t[i]:.1f} d")
plt.legend(loc=(0, 1), frameon=False, ncol=6, fontsize="small")
plt.ylabel("head [m]")
plt.xlabel("distance from river [m]")
plt.grid()
Now we get our head time series from the model to use as our observation time series in the calibration.
h_obs_series = ml_t.headalongline(x=x_obs, y=np.zeros_like(x_obs), t=t)
plt.figure(figsize=(10, 3))
for i in range(len(x_obs)):
plt.plot(t, h_obs_series[0, :, i], label=f"obs{i} (x={x_obs[i]})", marker="x", ls="-")
plt.legend(loc=(0, 1), frameon=False, ncol=3)
plt.ylabel("head [m]")
plt.xlabel("time [d]")
plt.grid()
plt.xscale("log")
Now we will calibrate both models simultaneously by passing both models to the calibrate class. We need to add the steady model separately so that the calibration class can link the parameters between the models.
We add the head observations as before.
Note that when defining the calibration parameters, we can now set the names of the
XSections we want to target, as well as the model. The model can be "steady",
"transient" or "both".
cal = tf.Calibrate(transient_model=ml_t, steady_model=ml_s)
for i in range(len(x_obs)):
cal.add_head_time_series(
name=f"obs{i}",
x=x_obs[i],
y=0.0,
layer=[0],
t=t,
h=h_obs_series[0, :, i],
normalized=True,
)
cal.set_aquifer_parameter(
"kaq",
layers=[0],
initial=2.0,
pmin=2.0,
pmax=100.0,
inhoms=["polder"],
model="both",
)
cal.set_aquifer_parameter(
"c",
layers=[0],
initial=1000.0,
pmin=1.0,
pmax=10_000,
inhoms=["polder"],
model="both",
)
cal.set_aquifer_parameter(
"Saq",
layers=[0],
initial=1e-4,
inhoms=["polder"],
pmin=1e-10,
pmax=1.0,
model="transient",
log_scale=True,
)
# cal.lmfit()
cal.fit(printdot=False)
initial optimal pmin pmax log_scaled \
name
kaq_0_0_polder 2.0000 9.999954 2.000000e+00 100.0 False
c_0_0_polder 1000.0000 500.002305 1.000000e+00 10000.0 False
Saq_0_0_polder 0.0001 0.001000 1.000000e-10 1.0 True
n_targets n_models n_inhoms
name
kaq_0_0_polder 2 2 1
c_0_0_polder 2 2 1
Saq_0_0_polder 1 1 1
RMSE: 2.472e-08
Let’s view the parameters dataframe
cal.parameters.style.format(
formatter="{:.2e}", subset=["initial", "optimal", "pmin", "pmax"]
)
| initial | optimal | pmin | pmax | log_scaled | n_targets | n_models | n_inhoms | |
|---|---|---|---|---|---|---|---|---|
| name | ||||||||
| kaq_0_0_polder | 2.00e+00 | 1.00e+01 | 2.00e+00 | 1.00e+02 | False | 2 | 2 | 1 |
| c_0_0_polder | 1.00e+03 | 5.00e+02 | 1.00e+00 | 1.00e+04 | False | 2 | 2 | 1 |
| Saq_0_0_polder | 1.00e-04 | 1.00e-03 | 1.00e-10 | 1.00e+00 | True | 1 | 1 | 1 |
plt.figure(figsize=(10, 3))
hm = ml_t.headalongline(x=x_obs, y=np.zeros_like(x_obs), t=t)
for i in range(len(x_obs)):
plt.plot(
t, h_obs_series[0, :, i], label=f"obs{i} (x={x_obs[i]})", marker="x", ls="none"
)
plt.plot(t, hm[0, :, i], label=f"sim{i}", color=f"C{i}")
plt.xscale("log")
plt.legend(loc=(0, 1), frameon=False, ncol=6)
plt.xlabel("time [days]")
plt.ylabel("head [m]")
plt.grid()
Calibrating on time series with constant offsets#
The Calibrate class supports adding unknown constants for each head time series. This is useful when the data has been measured relative to some reference level, but we are only interested in the variation in heads. This could be used for calibrating to head changes, while ignoring the absolute levels. Or, it could be used to calibrate on head observations that lie along a river, where the reference level might change slightly as we move downstream along that river.
In this example, we’re simply adding an increasing constant value (1, 2 or 3 m) to each head observation from the previous example.
Note that when adding the head time series, we now specify the constant and provide it
with a tuple containing three values: constant = (initial, pmin, pmax). This
represents the initial guess of the reference level, and the upper and lower bounds.
The upper and lower bounds are optional and may be ommitted by passing a single float.
cal = tf.Calibrate(transient_model=ml_t, steady_model=ml_s)
for i in range(len(x_obs)):
cal.add_head_time_series(
name=f"obs{i}",
x=x_obs[i],
y=0.0,
layer=[0],
t=t,
h=h_obs_series[0, :, i] + (i + 1.0),
constant=(0.1, -10, 10),
)
cal.set_aquifer_parameter(
"kaq",
layers=[0],
initial=2.0,
pmin=2.0,
pmax=100.0,
inhoms=["polder"],
model="both",
)
cal.set_aquifer_parameter(
"c",
layers=[0],
initial=1000.0,
pmin=1.0,
pmax=10_000,
inhoms=["polder"],
model="both",
)
cal.set_aquifer_parameter(
"Saq",
layers=[0],
initial=1e-4,
inhoms=["polder"],
pmin=1e-10,
pmax=1.0,
model="transient",
log_scale=True,
)
# cal.lmfit()
cal.fit(printdot=False)
initial optimal pmin pmax log_scaled \
name
obs0_constant 0.1000 1.000000 -1.000000e+01 10.0 False
obs1_constant 0.1000 2.000000 -1.000000e+01 10.0 False
obs2_constant 0.1000 3.000000 -1.000000e+01 10.0 False
kaq_0_0_polder 2.0000 9.999735 2.000000e+00 100.0 False
c_0_0_polder 1000.0000 500.013246 1.000000e+00 10000.0 False
Saq_0_0_polder 0.0001 0.001000 1.000000e-10 1.0 True
n_targets n_models n_inhoms
name
obs0_constant 1 0 0
obs1_constant 1 0 0
obs2_constant 1 0 0
kaq_0_0_polder 2 2 1
c_0_0_polder 2 2 1
Saq_0_0_polder 1 1 1
RMSE: 1.873e-08
The parameters dataframe shows that we were able to get the correct values of the constants.
cal.parameters.style.format(
formatter="{:.2f}", subset=["initial", "optimal", "pmin", "pmax"]
)
| initial | optimal | pmin | pmax | log_scaled | n_targets | n_models | n_inhoms | |
|---|---|---|---|---|---|---|---|---|
| name | ||||||||
| obs0_constant | 0.10 | 1.00 | -10.00 | 10.00 | False | 1 | 0 | 0 |
| obs1_constant | 0.10 | 2.00 | -10.00 | 10.00 | False | 1 | 0 | 0 |
| obs2_constant | 0.10 | 3.00 | -10.00 | 10.00 | False | 1 | 0 | 0 |
| kaq_0_0_polder | 2.00 | 10.00 | 2.00 | 100.00 | False | 2 | 2 | 1 |
| c_0_0_polder | 1000.00 | 500.01 | 1.00 | 10000.00 | False | 2 | 2 | 1 |
| Saq_0_0_polder | 0.00 | 0.00 | 0.00 | 1.00 | True | 1 | 1 | 1 |
Plot the calibration results. We now use the head time series objects contained within
the Calibration class to plot the observations. When we apply the constants, we see the
model fits perfectly with the data. If we set apply_constant=False, we would see that
the observations are shifted vertically relative to the model simulation.
plt.figure(figsize=(10, 3))
hm = ml_t.headalongline(x=x_obs, y=np.zeros_like(x_obs), t=t)
for i in range(len(x_obs)):
cal.observations_dict[f"obs{i}"].plot(
ax=plt.gca(), marker="x", ls="none", apply_constant=True
)
plt.plot(t, hm[0, :, i], label=f"sim{i}", color=f"C{i}")
plt.xscale("log")
plt.legend(loc=(0, 1), frameon=False, ncol=6)
plt.xlabel("time [days]")
plt.ylabel("head [m]")
plt.grid()
Calibrating on time series with time shifts#
Another option the new Calibration class provides is to set time shift parameters in the calibration. This allows the optimization to shift the head time series in time. This can be useful when there are phase shifts in the data that are not represented in our model, e.g. when the observations lie along a river, where a flood wave might arrive slightly earlier in upstream observation wells relative to the downstream observation wells.
In this example, we’re simply adding an increasing time shift (0.1, 0.2 and 0.3 days) to each head observation series from the previous example.
Note that when adding the head time series, we now specify the time shift and provide it
with a tuple containing three values: time_shift = (initial, pmin, pmax). This
represents the initial guess of the time shift, and the upper and lower bounds.
The upper and lower bounds are optional and may be ommitted by passing a single float.
We recreate the transient cross-section model here to reduce the order of the tmin
parameter, because shifting the observation time series can cause observations to lie
close to the changes in boundary conditions, which will introduce NaNs into the
simulation. These are filtered out, but the optimization might still be affected, so it
is recommended to also reduce the tmin to avoid this as much as possible.
# add steady model to transient model
ml_t = tft.ModelXsection(naq=1, tmin=1e-6, tmax=100, steady=ml_s)
river_t = tft.XsectionMaq(
ml_t,
x1=-np.inf,
x2=0.0,
kaq=[10.0],
z=[1, 0, -10],
c=[1e-4],
Saq=[1e-3],
topboundary="semi",
tsandhstar=[(0.1, 2)],
name="river",
)
polder_t = tft.XsectionMaq(
ml_t,
x1=0.0,
x2=np.inf,
kaq=[10.0],
z=[1, 0, -10],
c=[500],
Saq=[1e-3],
topboundary="semi",
name="polder",
)
ml_t.solve()
Number of elements, Number of equations: 4 , 2
.
.
.
.
solution complete
self.neq 2
solution complete
cal = tf.Calibrate(transient_model=ml_t, steady_model=ml_s)
for i in range(len(x_obs)):
cal.add_head_time_series(
name=f"obs{i}",
x=x_obs[i],
y=0.0,
layer=[0],
t=t + 0.1 * (i + 1),
h=h_obs_series[0, :, i],
time_shift=(1 / 24.0, 0.0, 1.0), # initial guess is we're 1 hour off
)
cal.set_aquifer_parameter(
"kaq",
layers=[0],
initial=2.0,
pmin=2.0,
pmax=100.0,
inhoms=["polder"],
model="both",
)
cal.set_aquifer_parameter(
"c",
layers=[0],
initial=1000.0,
pmin=1.0,
pmax=10_000,
inhoms=["polder"],
model="both",
)
cal.set_aquifer_parameter(
"Saq",
layers=[0],
initial=1e-4,
inhoms=["polder"],
pmin=1e-10,
pmax=1.0,
model="transient",
log_scale=True,
)
# cal.lmfit()
cal.fit(printdot=False)
Warning, some of the times ( 6.021147109236402e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
Warning, some of the times ( 8.672320787050936e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
Warning, some of the times ( 9.512140915768352e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
Warning, some of the times ( 9.146629446066257e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
Warning, some of the times ( 9.253381204887834e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
Warning, some of the times ( 9.441022927048071e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
Warning, some of the times ( 9.851228263690892e-07 ) are smaller than tmin = 9.9999999e-07 after a change in boundary condition. Nans are substituted.
initial optimal pmin pmax log_scaled \
name
obs0_time_shift 0.041667 0.100002 0.000000e+00 1.0 False
obs1_time_shift 0.041667 0.199999 0.000000e+00 1.0 False
obs2_time_shift 0.041667 0.299953 0.000000e+00 1.0 False
kaq_0_0_polder 2.000000 9.984054 2.000000e+00 100.0 False
c_0_0_polder 1000.000000 500.797334 1.000000e+00 10000.0 False
Saq_0_0_polder 0.000100 0.000998 1.000000e-10 1.0 True
n_targets n_models n_inhoms
name
obs0_time_shift 1 0 0
obs1_time_shift 1 0 0
obs2_time_shift 1 0 0
kaq_0_0_polder 2 2 1
c_0_0_polder 2 2 1
Saq_0_0_polder 1 1 1
RMSE: 1.539e-06
We got a few warnings about the computation time lying to close to a change in boundary condition, but the results looks good nonetheless. The parameters dataframe shows the time shifts are estimated correctly.
cal.parameters.style.format(
formatter="{:.2f}", subset=["initial", "optimal", "pmin", "pmax"]
)
| initial | optimal | pmin | pmax | log_scaled | n_targets | n_models | n_inhoms | |
|---|---|---|---|---|---|---|---|---|
| name | ||||||||
| obs0_time_shift | 0.04 | 0.10 | 0.00 | 1.00 | False | 1 | 0 | 0 |
| obs1_time_shift | 0.04 | 0.20 | 0.00 | 1.00 | False | 1 | 0 | 0 |
| obs2_time_shift | 0.04 | 0.30 | 0.00 | 1.00 | False | 1 | 0 | 0 |
| kaq_0_0_polder | 2.00 | 9.98 | 2.00 | 100.00 | False | 2 | 2 | 1 |
| c_0_0_polder | 1000.00 | 500.80 | 1.00 | 10000.00 | False | 2 | 2 | 1 |
| Saq_0_0_polder | 0.00 | 0.00 | 0.00 | 1.00 | True | 1 | 1 | 1 |
Plot the calibration results. We now use the head time series objects contained within
the Calibration class to plot the observations. When we apply the time shifts, we see the
model fits perfectly with the data. If we set apply_time_shift=False, we would see that
the observations are shifted in time relative to the model simulation.
plt.figure(figsize=(10, 3))
hm = ml_t.headalongline(x=x_obs, y=np.zeros_like(x_obs), t=t)
for i in range(len(x_obs)):
cal.observations_dict[f"obs{i}"].plot(
ax=plt.gca(), marker="x", ls="none", apply_time_shift=True
)
plt.plot(t, hm[0, :, i], label=f"sim{i}", color=f"C{i}")
plt.xscale("log")
plt.legend(loc=(0, 1), frameon=False, ncol=6)
plt.xlabel("time [days]")
plt.ylabel("head [m]")
plt.grid()
